Sheets and Plates

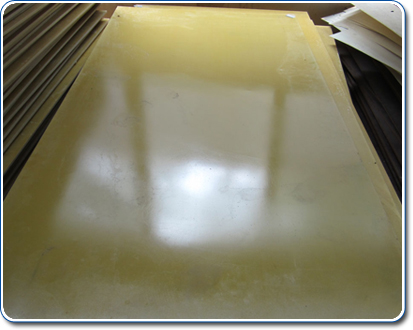

    Glass Fabric Laminates

    Glass fabric laminates are manufactured using high-pressure techniques and are characterized by extremely high mechanical strength and outstanding electrical and thermal properties.






Matrix Units   Epoxy Epoxy Epoxy Epoxy
Reinforcement     Glass cloth Glass cloth Glass cloth Glass cloth
Standards NEC 60893
NEMA LI-1
DIN 7735 (for info)
  EP G C 201
G-10
HGW 2372
EP G C 203
G-11
HGW 2372.4
EP G C 202
FR-4
HGW 2372.1
EP G C 308
Form of delivery (mm)     1220 x 2450
0.2 to 150
1220 x 2450
0.2 to 150
1220 x 2450
0.2 to 150
1220 x 2450
0.2 to 150

Density     1.85 1.85 1.85 1.85
Water Absorbtion %     0.04 0.02 0.02 0.02
Tensile Strength N/MM2     300 300 300 300
Flexural Strength N/MM2     400 400 400 450
Compressive Strength N/MM2     300 350 350 350
Impact Strength KJ/M2     54 54 54 54
Electrical Strength
   Flatewise KV/MM
   Edgewise KV

12
40

15
40

12
40

15
40
Insulation Resistance Ohms     1 x 10^8 1 x 10^12 1 x 10^12 1 x 10^12
Comparative Traking Index     >500 >600 >180 >180
HeatDistortion Temp%     >160 >160 >160 >200
Thermal rating Deg C     150 >155 150 >180
